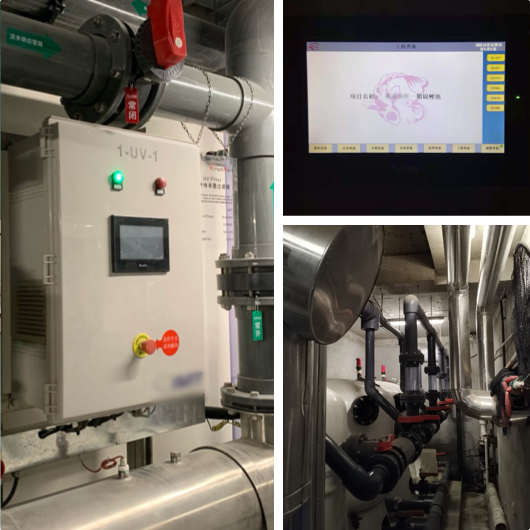

Integrated Life Support System (Skid)
-
Our integrated life support system is a customized "plug and play" integrated unit, specifically designed to meet the specific requirements of customers. A single large integrated life support system can be applied to fish tanks with a water volume of 20,000 liters.
The all-in-one life support system enables faster and cheaper installation, while having reliable and high-quality products.
Biological Filters
-
Our sand filters provide effective filtration and high-quality water as easily as possible year after year, day after day. After years of research and development, our proprietary design has been honed to create a device that is both easy to use and robust.
Our sand filter is made of strong and durable high-quality vinyl ester resin, which has the ability to resist chemical corrosion and ozone erosion. The interior does not contain any corrosive metal parts, and uses high-quality fittings and valve structures.
Our sand filters can be ordered individually or in batches, and then shipped to aquarium designers and builders around the world. Contact us to discuss which models of equipment should be specified for your aquarium project.
Designed for simplicity and ease of operation.

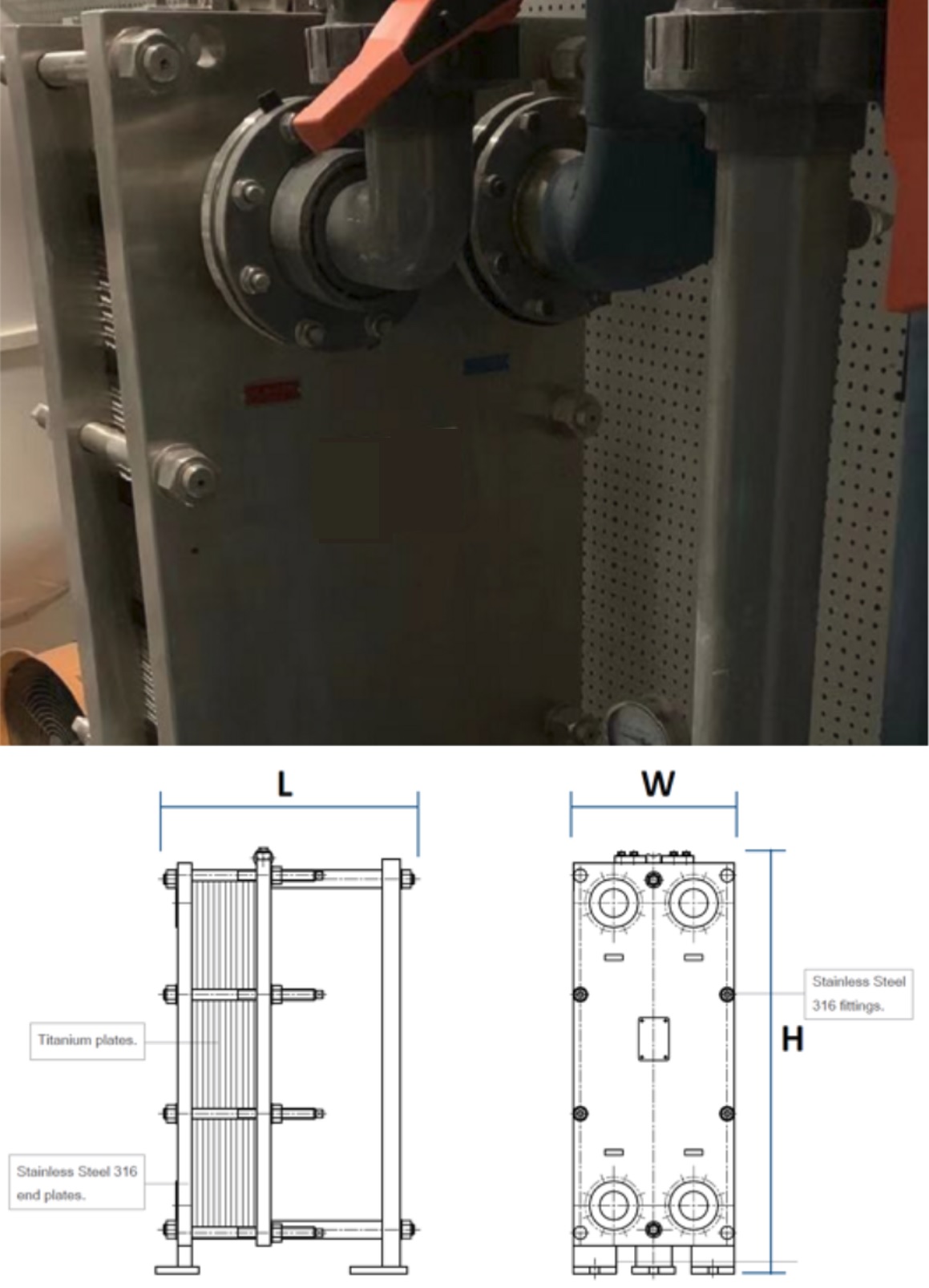

Heat Exchanger
-
Nothing is more important to animal survival than maintaining a proper and stable water temperature. This is not necessarily a simple task. Air temperature, visitor flow and the heating and cooling effects of direct sunlight will affect different exhibition pools in different ways. Water temperature fluctuates in different ways at different times of the day and in different parts of the facility. Our heat exchanger can ensure that the exhibition pool water is effectively maintained at an appropriate and stable level.
Our heat exchangers enable aquarium operators to transfer heat energy from one body of water to another without direct contact between the two bodies of water.
For example, water from the exhibition pool flows through small tubes inside the titanium plates, while the outside of these plates is immersed in water from the central building's service cooling water pipeline. The hotter water becomes cooler and the colder water becomes warmer, but the water bodies do not touch each other.
By applying the same process, our heat exchanger can be used to transfer heat between water and air or between two gases.
Effectively transfer heat between air and/or water.

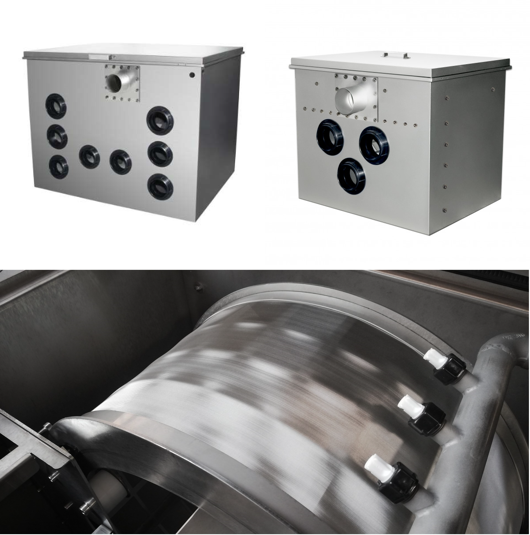

Drum Filters
-
Equipped with very fine (0.05mm) stainless steel filter screen, which can remove even very fine particles in water.
The automatic cleaning process does not need to be connected to tap water. The unit integrates high-pressure pump. The water level in the filter is controlled and adjusted by a float switch to ensure that the equipment does not run idly and the water level meets the requirements for automatic cleaning. When the impurities on the filter increase, the high-pressure pump will automatically turn on. The swivel filter begins to rotate, relying on a high-pressure pump up to 5bar to spray water from the nozzles. The impurities attached to the filter such as feces, algae, and excess fish food will be flushed to the drain and removed from the water circulation.
Automatically maintain clean water quality.
Supply Full Series of INAZUMA Products
Inazuma is a drum filter manufacturer, headquartered in Germany/Augsburg, provides fully automatic, intelligently interconnected drum filters with the highest quality standards. As the general agent of Inazuma in the Asia-Pacific region, GM will provide you with a full range of Inazuma products. Since 2008, it has been developing and producing low-maintenance V4A stainless steel filters, and applied the filters with industrial quality production technology.
To ensure consistently high standards, Inazuma uses Germany as its production base. Professional qualified personnel and certified professional companies participate in the development and production of filter systems. The most advanced technologies such as laser cutting and TIG welding robots are being used to ensure precision and perfection.

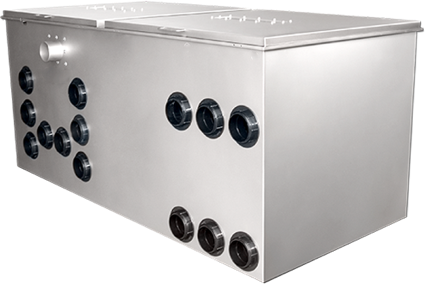

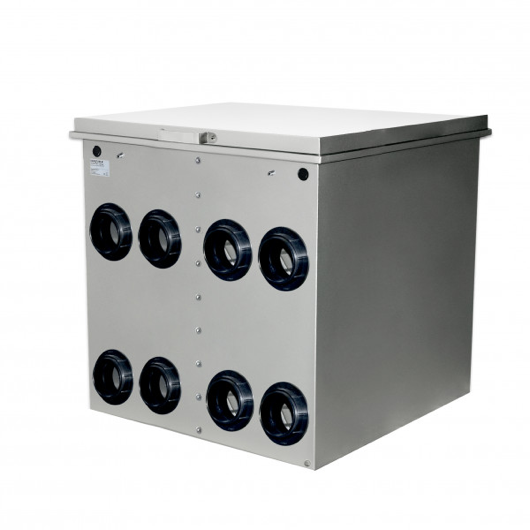

The Inazuma drum filter ITF-240 Biocompact of the septum model series provides a thorough, reliable and fully automatic cleaning of your pond. It is suitable for swimming pools up to 400m³ and koi ponds up to 200m³. Biocompact comes with an integrated biological chamber, which integrates the integrity of biological balance and a space-saving system.
Due to its smart design, the filter can be used for pump configuration and gravity configuration.
Inazuma uses industrial-quality corrosion-resistant stainless steel V4A as the material for its filter housing. The alternately hinged filter cover and hydro-pneumatic air pressure regulator ensure smooth opening and closing of the filter, thereby ensuring greater convenience and user-friendliness. Inazuma also includes dry running protection and safe overflow, as well as more standard equipment.
The low maintenance cost of Inazuma filters is very satisfactory. All it needs in the washing process is pure koi pond water, without consumables such as wool. Instead, contamination is reliably removed from the system by the robust and covered drum with 50 μ V4A stainless steel mesh.

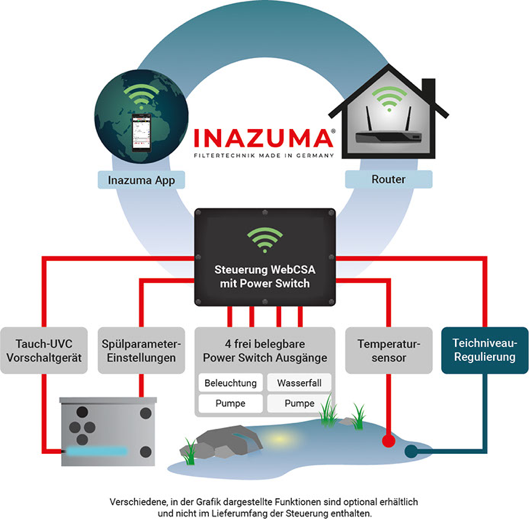

The Web-enabled control WebCSA is included in the scope of delivery of each drum filter. Using the WebCSA application, you can use your mobile phone or tablet to conveniently view and control many parameters anywhere in the world. The system can meet your needs through PowerSwitch expansion module, temperature sensor and water level control.
The filter/control can also be operated without an internet connection. In order to configure the controls and activate optional accessories, only one Internet connection is required at the control location. If you want to operate the control without a WLAN connection, you can also order the "factory" configuration of the control.
The guarantee of the supply of spare parts directly from the manufacturer guarantees the pleasure of many years and Germany has taken a solid, low-maintenance filter.

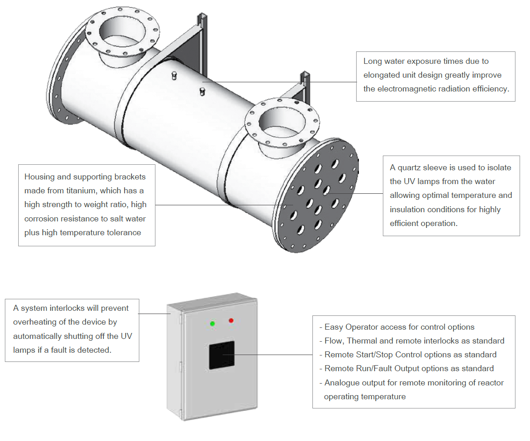

Ultraviolet Filters
-
Ultraviolet germicidal irradiation (UVGI) is a disinfection method that uses short-wave ultraviolet (UV-C) light to kill or destroy living microorganisms by damaging nucleic acids and damaging their DNA, so that they cannot perform important cellular functions.
Our UV range ranges from 300 watts to 3600 watts, and there are 12 specifications in total. Our experienced LSS technicians will determine the best UV solution for your aquarium needs.
